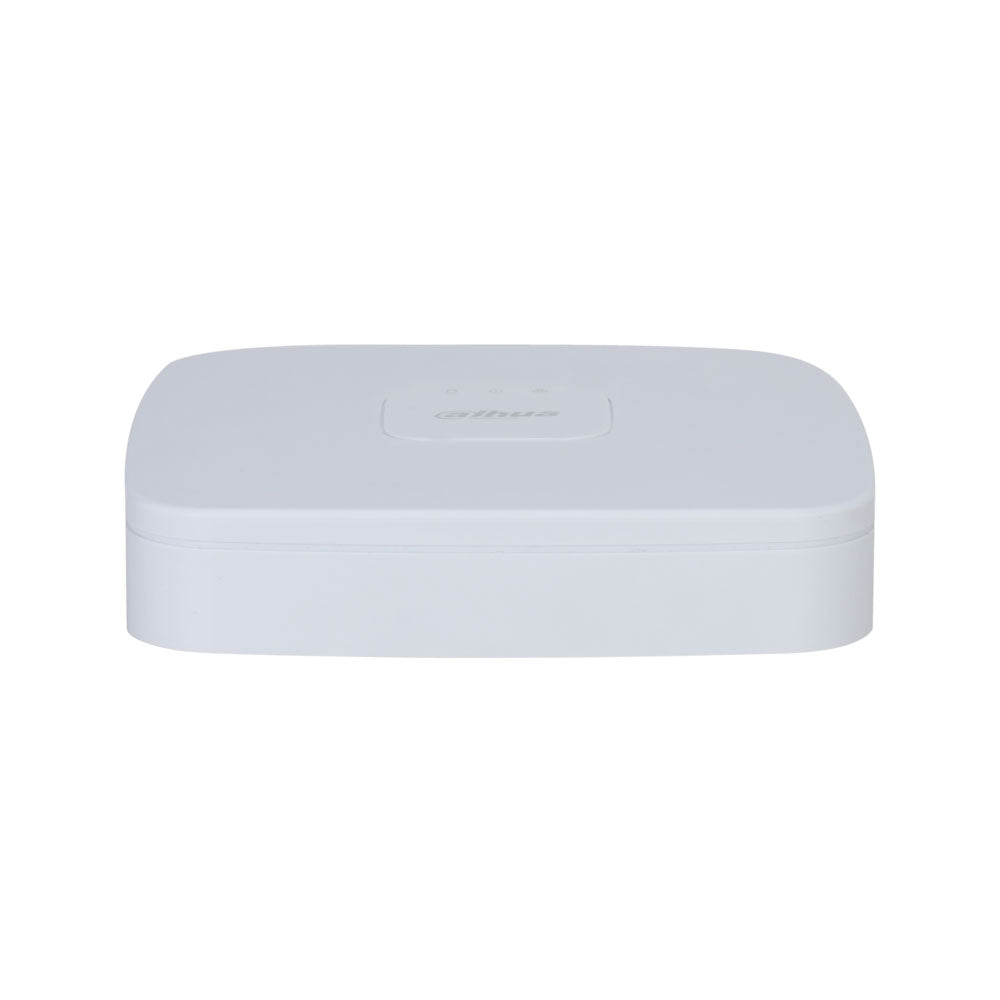

Dahua 4-channel IP NVR

4 IP channels

Video compression: Smart H.265+, H.265, Smart H.264+, H.264

Simultaneous HDMI and VGA video outputs

Output distribution: 1, 4

1 audio input / 1 audio output

Audio compression: PCM, G.711a, G.711u, G726

Recording resolution: 12MP, 4K/8MP, 5MP, 4MP, 4MP, 3MP, 1080P, 720P, D1

Bandwidth: 80 Mbps for access, 80 Mbps for storage, and 60 Mbps for transfer

Decoding capacity: 6 channels at 1080P (30 fps), 3 channels at 4MP (30 fps), 2 channels at 5MP (30 fps), 1 channel at 8MP (30 fps), 1 channel at 12MP (30 fps)

Manual, alarm, motion detection, and timer recording modes

Video sensor alarm, privacy mask alarm, video loss alarm, PIR alarm

Artificial intelligence from the camera:

Perimeter protection: 4 channels

SMD Plus: 4 channels

Playback up to 4 channels

Internal capacity for 1 SATA hard drive up to 16TB (sold separately)

New user interface for a simpler user experience

RJ45 Fast Ethernet network port (10/100 Mbps)

Network protocols: HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP filtering, DDNS, alarm server, IP search, P2P

ONVIF (Profile T/S/G), CGI, and SDK support

Compatible with Chrome, IE9+, Firefox browsers

Compatible with Android and iOS devices

Local and Internet access server

Possibility to limit user access to cameras in local and/or remote mode

Can be remotely controlled via a Joystick keyboard connected via TCP/IP

Email sending with attached photo in case of alarm

Sending to FTP scheduled or on alarm

Possibility to send an alarm, and be connected to a video surveillance reception software

Possibility of fixed or dynamic IP via Dyndns, NoIP, DDNS Evolution, etc. service.

Communication ports: 2 USB 2.0 ports

Power supply: 12V DC, 1.5A

Power consumption: ≤10W (without drives)

Operating temperature: -10°C ~ +55°C

Relative humidity 10%~93%.

Dimensions: 204.6 (L) x 45.6 (H) x 206 mm

Weight: 420 g

Desktop installation
