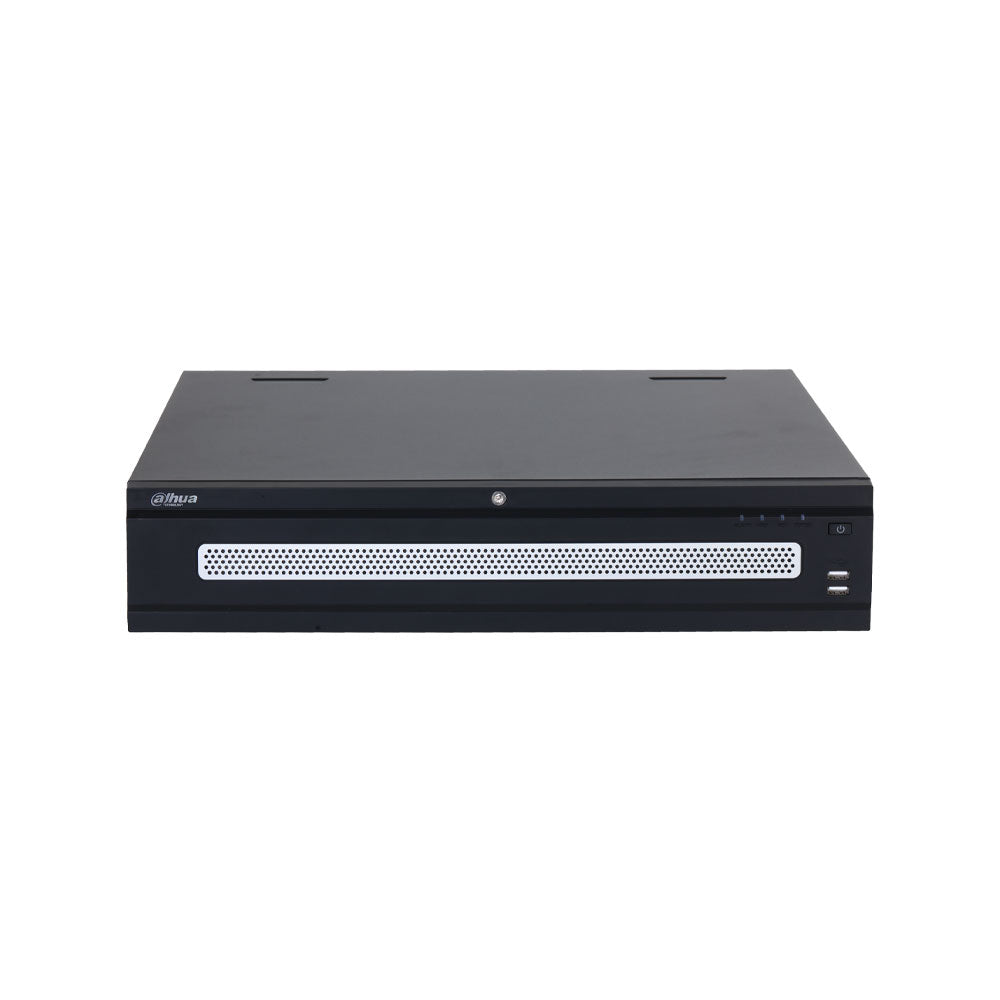

Wizmind IP NVR 128 channels

• 128 IP channels
• Video compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
• 4 HDMI video outputs (HDMI1/2 4K, HDMI3 8K, HDMI4 1080P) and 2 VGA outputs (1080P)
• Primary display output division: 1, 4, 8, 8, 9, 16, 25, 36, 64
• Secondary display output divisions: 1, 4, 8, 9, 16, 25, 36, 64
• 1 RCA input / 2 RCA audio outputs
• Two-way audio via RCA input / RCA output
• Recording resolution: 32MP, 24MP, 16MP, 12MP, 8MP, 5MP, 4MP, 1080P, 720P, D1
• Bandwidth with AI disabled: 1024 Mbps input, 1024 Mbps recording, 800 Mbps output
• Bandwidth with AI enabled: 512 Mbps input, 512 Mbps recording, 400 Mbps output
• Real-time decoding capability (30 ips): 2 channels at 32MP, 2 channels at 24MP, 4 channels at 16MP, 8 channels at 8MP, 16 channels at 4MP, 32 channels at 1080P, 72 channels at 720P, 160 channels at D1
• Manual, calendar, alarm, motion detection, motion detection recording modes
• Video sensor alarm, masking alarm, video loss alarm, scene change alarm, PIR alarm, IP camera
• Playback up to 16 channels
• 16 alarm inputs / 8 alarm outputs
• Internal capacity for 8 SATA III hard drives up to 16TB (sold separately)
• eSATA port
• AI on recorder:
  • Perimeter protection up to 24 channels with 10 IVS rules per channel
  • Face detection with up to 4 channel attributes and up to 12 frames per second per channel
  • Face recognition with up to 4 channel attributes, up to 12 frames per second and up to 40 databases with 300,000 images.
  • SMD Plus up to 32 channels with filtering between people and vehicles
  • Video metadata with people and vehicle attributes up to 8 channels
• AI support by compatible cameras:

  • Supports up to 64 cameras with perimeter protection
  • Supports up to 64 cameras with face detection
  • Supports up to 64 cameras with face recognition
  • Supports up to 64 cameras with SMD Plus
  • Supports up to 32 cameras with video metadata
  • Supports up to 32 ANPR cameras (up to 20,000 white/black lists)
• Watermark to preserve video integrity
• 2 RJ45 Fast Ethernet network ports (10/100/1000Mbps)
• Network protocols: HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, DDNS, alarm server, IP search (supports Dahua IP cameras, DVR, NVS, etc.), Multicast, P2P, automatic recording, ISCSI
• ONVIF (S/G/T), SDK, CGI support
• Remote access from a web browser, iOS and Android devices
• Access to local network and Internet server
• Ability to limit user access to cameras in local and/or remote mode
• Ability to remote control via a Joystick keyboard connected by TCP/IP
• Sending emails with attached photo in case of alarm
• Sending to FTP scheduled or in alarm
• Ability to send an alarm, and to be connected to video surveillance reception software
• Ability of fixed or dynamic IP via Dyndns, NoIP, DDNS Evolution, etc. service
• Communication ports: 2 USB 3.0 ports, 2 USB 2.0 ports, 1 RS485 port, 1 RS232 port
• Power supply: 100V ~ 240V AC, 50/60Hz
• Power consumption: ≤18W (without disks)
• Operating temperature: -10°C ~ +55°C
• Dimensions: 440 (L) x 94.9 (H) x 458.4 mm
• Weight: 6.4 kg
• Desktop or 2U rack installation

    Supports up to 64 cameras with perimeter protection
    Supports up to 64 cameras with face detection
    Up to 64 cameras with facial recognition
    Supports up to 64 cameras with SMD Plus
    Supports 32 cameras with video metadata
    Supports 32 ANPR cameras (up to 20,000 white/black lists)Watermark to preserve video integrity
2 RJ45 Fast Ethernet network ports (10/100/1000Mbps)
Network protocols: HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, DDNS, alarm server, IP search (supports Dahua IP cameras, DVR, NVS, etc.), Multicast, P2P, automatic recording, ISCSI
ONVIF (S/G/T), SDK, CGI support
Remote access from a web browser, iOS and Android devices
Access to local network and Internet server
Ability to limit user access to cameras in local and/or remote mode
Ability to remote control via a Joystick keyboard connected by TCP/IP
Sending emails with attached photo in case of alarm
Sending to FTP scheduled or in alarm
Ability to send an alarm, and to be connected to video surveillance reception software
Ability of fixed or dynamic IP via Dyndns, NoIP, DDNS Evolution, etc. service
Communication ports: 2 USB 3.0 ports, 2 USB 2.0 ports, 1 RS485 port, 1 RS232 port
Power supply: 100V ~ 240V AC, 50/60Hz
Power consumption: ≤18W (without disks)
Operating temperature: -10°C ~ +55°C
Dimensions: 440 (L) x 94.9 (H) x 458.4 mm
Weight: 6.4 kg
Desktop or 2U rack installation
