Description

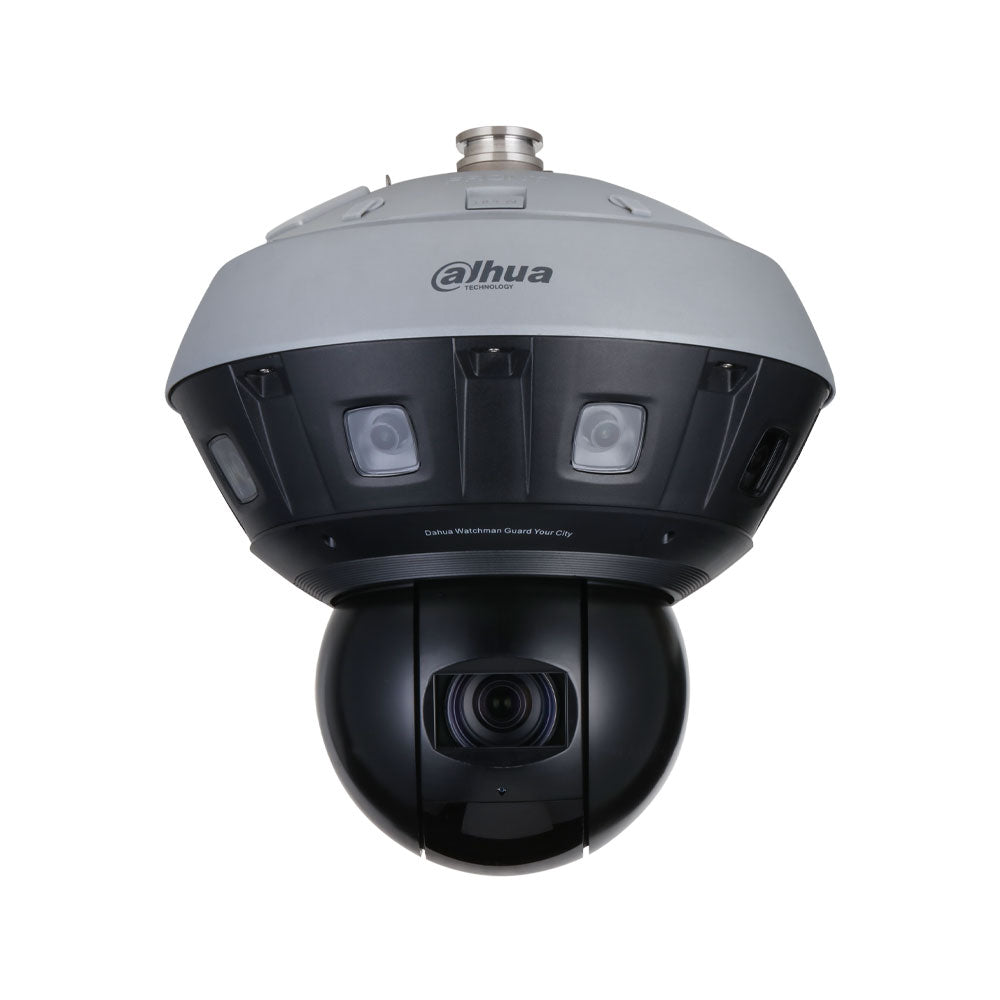

Panoramic camera
- 8 1/1.8" 2-megapixel CMOS sensors (16 megapixels total)
- Resolution: 8192x1800, 7680x1680, 5760x1264, 4096x900, 3840x832, 2560x560, 2048x452
- Stream 1: 8192x1800 (1~25/30 fps)
- Stream 2: 2048x452 (1~25/30 fps)
- Stream 3: 3840x832 (1~25/30 fps)
- 0.0005 lux F1.0 (color), 0.0001 lux F1.0 (B/W)
- 2.8mm fixed lens
- Viewing angle: 360°(H), 103°(V)
- Image modes: BLC, HLC, digital WDR, 3D-NR
- White balance with 5 modes
- Automatic and manual gain control
- Supports 4-zone video sensor, 4 regions of interest (ROI), and 4-zone privacy mask
- Smart functions:
- Perimeter protection: cross-line detection, intrusion detection, parking detection
- Vehicle density: vehicle density, maximum parking limit, traffic jam alarm
- Crowd distribution map: crowd map, overall crowd density, crowd density in an area, number of people in an area.
Motorized camera
- 1/1.8" 4-megapixel CMOS sensor
- Resolution: 2560x1440, 1920x1080, 1280x960, 1280x960, 1280x720, 704x576, 640x480, 352x288
- Stream 1: 2560x1440 (1~25/30 fps)
- Stream 2: 704x576 (1~25/30 fps)
- Stream 3: 1920x1080 (1~25/30 fps)
- Removable mechanical filter
- Infrared illumination: 7 IR LEDs, up to 400 meters
- 0.001 lux F1.4 (color), 0.0005 lux F1.4 (B/W), 0 lux IR On
- 40X optical zoom: 5.5 ~ 220 mm
- Viewing angle: 2.2°~61.8°(H), 1.3°~36.3°(V), 2.4°~69.2°(D)
- P-iris control
- Image modes: BLC, HLC, 120dB WDR, 3D-NR, Defog
- White balance with 5 modes
- Automatic and manual gain control
- Supports 4-zone video sensor, 8 regions of interest (ROI), and 24-zone privacy mask (up to 8 per preset)
- Horizontal positioner: 0° ~ 360° continuous
- Vertical positioner: -11° ~ 90°, 180° auto flip, 180° auto flip manual speed: 240°/sec.
- Manual speed: 240°/sec (H), 100°/sec (V)
- 300 presets
- 5 patterns, 8 tours (up to 32 presets per tour), 5 scans
- Smart functions:
- Perimeter protection: line crossing detection, intrusion detection, parking detection, virtual fence crossing detection, rapid movement, abandoned object, missing object, crowd, loitering detection.
- Face recognition: face detection with tracking, instant and optimized capture, facial attribute enhancement and extraction, capture configuration and snapshot strategies, supports 5 face group databases.
- Video metadata: vehicle attributes, non-motorized vehicle attributes, human attributes, facial attributes
General
- Smart H.265+, Smart H.264+, H.265, H.264, MJPEG video compression
- G.711a, G.711Mu, G.726, G.723, PCM audio compression
- 1 BNC video output
- 2 audio inputs / 1 audio output
- 7 alarm inputs / 3 alarm outputs
- 1 RS485 port
- Network interface: RJ45 (10/100/1000 Base-T)
- Network protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P
- ONVIF support (Profile S/G/T), CGI, SDK, API
- Up to 20 users
- Supports IE11, Chrome, Firefox browsers
- MicroSD card slot up to 512GB (card not included)
- Power supply: 36V DC
- Power consumption: 59W~99W
- Storage temperature: -40°C ~ +70°C
- Operating temperature: -40°C ~ +60°C
- 95% relative humidity
- IP66 protection rating
- Metal and plastic casing
- Dimensions: Ø383 x 462 mm
- Gross weight: 20.3 kg
- Net weight: 14.4 kg
- Power supply included
