Description
Technical Characteristics

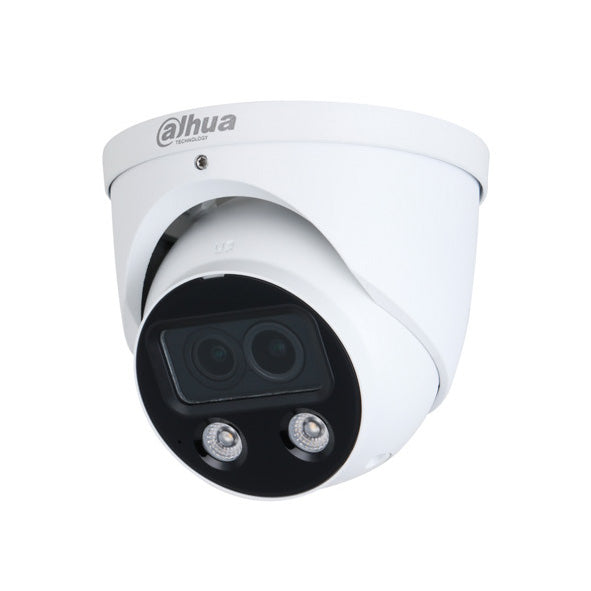

- 4MP Dahua WizMind Full-color IP Dome Camera
- Dual 1/1.8" CMOS sensor with multispectral fusion technology
- Maximum resolution: 4MP (2688×1520)
- Minimum illumination: 0.0002 lux@F1.0
- IR and warm light illumination up to 50 m (2 IR + 2 warm LEDs)
- Fixed 2.8 mm, F1.0 lens
- Angle of view: H 97°, V 48°, D 115° DORI (2.8 mm), F1.0
- DORI (2.8 mm): Detect 58 m; Observe 23 m; Recognize 12 m; Identify 6 m
- Mechanical rotation: pan 0°~360°, tilt 0°~78°, rotation 0°~360° (3AXIS)
Video Stream
- Codecs: H.265, H.264, MJPEG (sub-stream); Smart H.265+/H.264+; AI H.265/H.264
- Resolutions: 4MP (2688×1520), 1080P (1920×1080), 1.3M (1280×960), 720P (1280×720), D1, VGA, CIF
- Stream 1: 4MP@1-25/30 fps
- Stream 2: D1@1-25fps / D1@1-30fps
- Stream 3: 1080P@1-25/30 fps
- Bit rate: H.264 32 kbps-8192 kbps; H.265 19 kbps-8192 kbps
- DWDR, BLC, HLC, 3D NR, ROI, 0°/90°/180°/270° rotation.
Features
- Color technology with ultra-sensitive F1.0 sensor
- Heatmap
- Defocus detection and scene change
Smart Functions
- Perimeter protection: line crossing, intrusion, rapid movement, loitering, gathering, parking (with vehicle/person classification)
- SMD 3.0 with false alarm reduction and extended range
- Face detection with capture, optimization, attributes (gender, age, glasses, expression, mask, beard), angle filter and 3 capture strategies
- People counting: entry, exit, dwell time and queue management with daily/monthly/annual reports
- Smart search with NVR support
Audio
- Built-in microphone and speaker (two-way audio)
- 1 audio input and 1 audio output (RCA)
- Codecs: PCM, G.711a/u, G.726, G.723
Storage
- MicroSD slot up to 256 GB (card not included)
- FTP/SFTP, NAS
Alarms
- 1 alarm input / 1 alarm output
- Events: motion detection, tampering, video loss, intrusion, line crossing, loitering, parking, gathering, abandoned/missing object, face detection, counting, people errors, audio detection, and security exception.
Communication Interface
- 1 RJ45 port (10/100 Base-T)
Network
- Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, SMTP, FTP, DHCP, DNS, NTP, Multicast, DDNS
- Interoperability: ONVIF (S/G/T), CGI, Milestone, Genetec, P2P
- Security: encrypted video/configuration, X.509, HTTPS, secure boot/upgrade
- Manager: Smart PSS, DSS, DMSS; iOS/Android applications
Power Supply
- 12 VDC ±30%; PoE (802.3af); ePoE
- Power consumption: basic 3.9 W; maximum 9.3 W (12 VDC) / 10.5 W (PoE)
Environment
- Operating temperature: -40°C ~ +60°C (-40°F ~ +60°F)
- Humidity ≤ 95%.
- IP67 protection
Physical Characteristics
- Metal casing
- Dimensions: Φ122 × 110.9 mm
- Net weight: 0.75 kg
- Gross weight: 0.94 kg
- Installation: wall, ceiling, pole, with optional brackets
Contents
- Dahua DAHUA-3194-FO WizMind Full-color IP Dome Camera (DH-IPC-HDW5449HP-ASE-D2-0280B-QH)
Compatible Accessories (not included)
- PFA137 Junction Box
- PFB203W Wall Mount
- PFA152-E Pole Mount
- PFB220C Ceiling Mount
- PFA106 Mounting Adapter
- PFM321D Power Supply (12 VDC 1A)
- PFM900-E Tester
- TF-P100 MicroSD Card
Certifications
- CE-LVD: EN62368-1
- CE-EMC: Directive 2014/30/EU
- FCC: 47 CFR Part 15, Subpart B
- UL/CUL: UL62368-1 & CAN/CSA C22.2 No.62368-1-14
