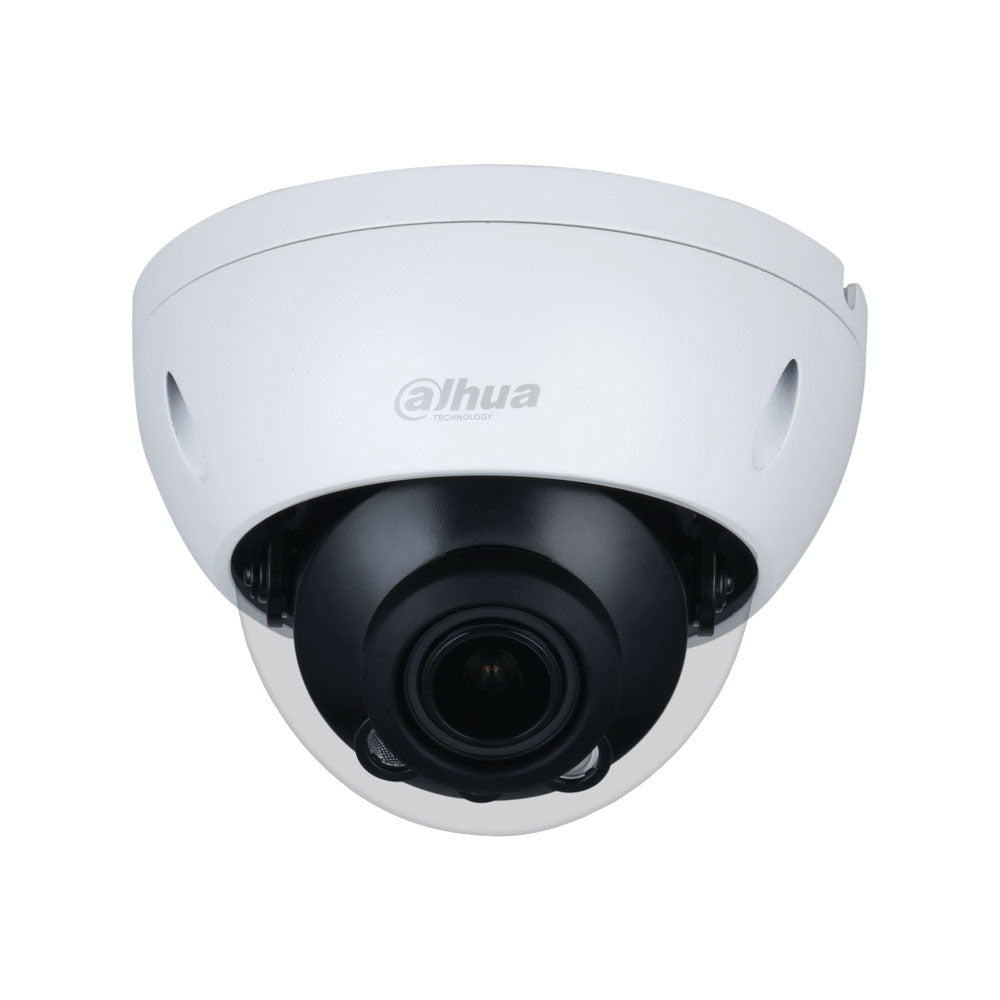

Description
Features
- 2 megapixel CMOS sensor
- Digital Resolution: 1080P (1920x1080), 720P (1280x720), 960H (960x576)
- Frame rate: 25 fps@1080P (CVI/TVI/AHD), 25 fps@720P (AHD), 25 fps@960H (CVBS)
- 4-in-1 switchable output
- Day/night mode with removable mechanical filter
- 0.02 lux F1.7 (color) / 0 lux with IR on
- Smart IR: 2 IR LEDs, 30 meters
- 2.7 ~ 12 mm motorized lens
- Viewing angle: 33°~102°(H), 19°~53°(V), 38°~125°(D)
- OSD via coaxial (1080P video up to 700 meters)
- Image modes: BLC, HLC, digital WDR, 2D-NR, Mirror
- Automatic and area white balance
- Automatic and manual gain control
- 8-zone privacy mask support
- Includes microphone
- PoC Power (CVI only): can be powered via a single coaxial cable via XVR with PoC function
- Power supply: 12V DC (±30%) / PoC (CVI)
- Consumption: 2W (12V) / AT (PoC)
- Storage temperature -30°C ~ +60°C
- Operating temperature -30°C ~ +60°C
- Relative humidity: <95% (non-condensing)
- IP67 protection rating
- IK10 vandal-resistant
- Metal and plastic housing
- Dimensions: Ø122 x 88.9 mm
- Weight: 340g
- 3 AXES: 0°~355°(PAN), 0°~75°(TILT), 0°~355°(Rotation)
