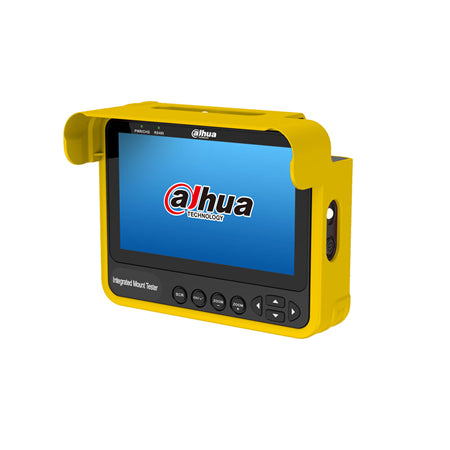

Dahua 4-in-1 CCTV Tester

Specifications

• Operating system: Linux
• Language: multilingual
• Operating mode: keyboard
• Auto sleep/shutdown
• 4.3" TFT screen (480 x 272)
• 8-key keyboard
• LED indicator light (3x35lm)
• Format: HDCVI; HDTVI; AHD; CVBS (NTSC; PAL)
• Resolution:
• HDCVI: 2MP @ 25fps/30fps; 4MP @ 25fps/30fps; 5MP @ 20fps; 6MP @ 20fps; 4K @ 12.5fps/15fps
• HDTVI: 2MP @ 25fps/30fps; 4MP @ 25fps/30fps; 5MP @ 20fps
• AHD: 2MP @ 25fps/30fps; 4MP @ 25fps/30fps
• CVBS: NTSC; PAL
• Function control via OSD
• Live video display
• Communication protocol: more than 30 protocols such as Pelco-D/P, Samsung, Panasonic, Lilin, and Yaan
• Transmission speed: 150 bps; 300 bps; 600 bps; 1200 bps; 2400 bps; 4800 bps; 9600 bps; 19200 bps
• Audio: 1 channel audio input
• Camera power supply
• Certifications: CE: EN 55032; FCC: FCC Part 15 Subpart B
• Power supply: 1 output 21V/1A DC
• Audio: 1 input
• 1x USB micro-B (charging/data)
• 1x RS-485
• Battery: 2 x lithium batteries (8-hour duration)
• Operating temperature: -10 °C to +55 °C
• Humidity: 30%-95%
• Color: yellow
• Dimensions: 125.0 mm × 100.0 mm × 65.0 mm
• Net weight: 0.34 kg
• Gross weight: 0.74 kg
