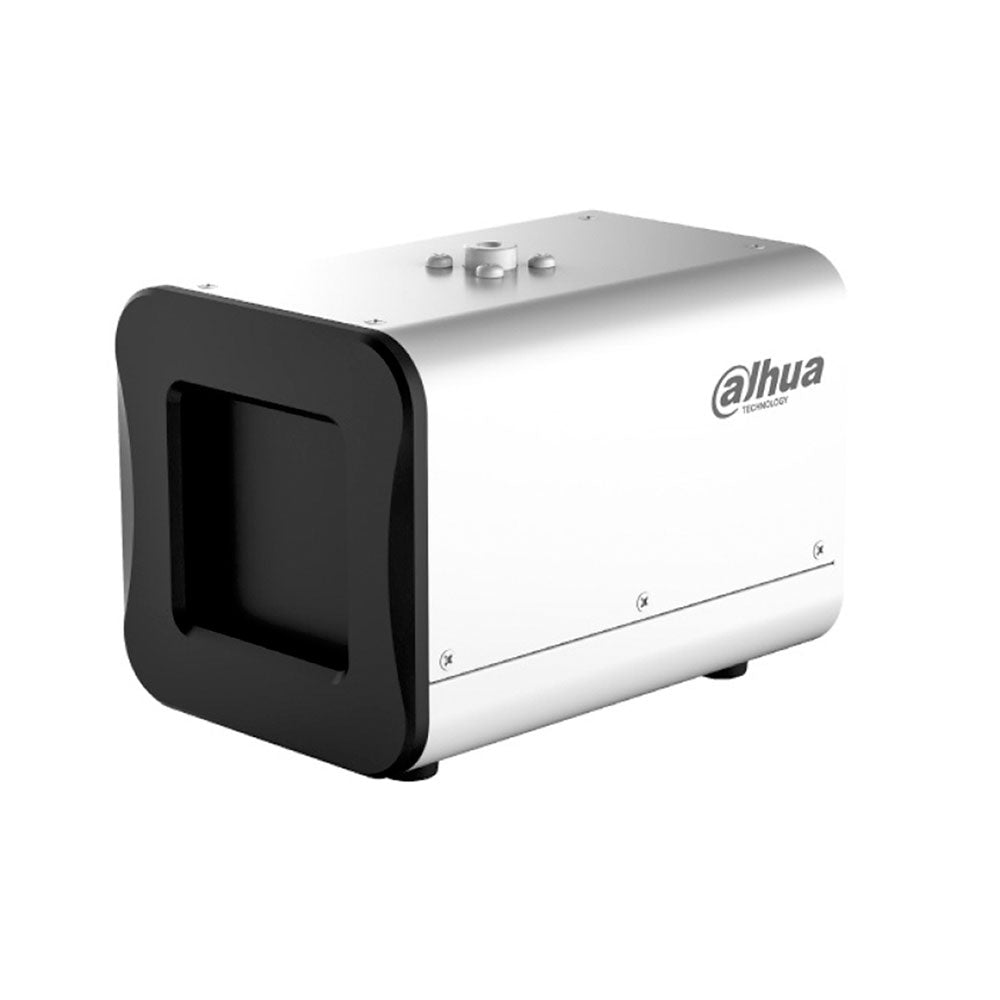

A blackbody is a calibration device that maintains a constant temperature as a reference point for the thermal camera, ensuring that the thermal camera can display a more accurate temperature.
The thermal camera in conjunction with the Blackbody Calibration Device offers a non-contact solution for continuous, non-invasive, and non-contact temperature monitoring.
Specifications
- Default calibration temperature of 35 °C
- Temperature range: ambient temperature + 5 °C ~ + 50 °C
- Effective radiating surface of 70 x 70 mm
- Temperature resolution: 0.1 ?
- Temperature accuracy: ± 0.2 ?
- Temperature stability: ± 0.1 ~ 0.2 ? / 30 min
- Emissivity: 0.97 (± 0.01)
- Storage temperature from -10 °C ~ + 50 °C
- 0 ? ~ + 40 ? operating temperature
- Relative humidity ≤80%
- Power: 100V ~ 240V AC, 50 / 60Hz, 0.5A
- Dimensions: 125 (L) x 125 (H) x 184 mm
- Net weight 2.35 kg
