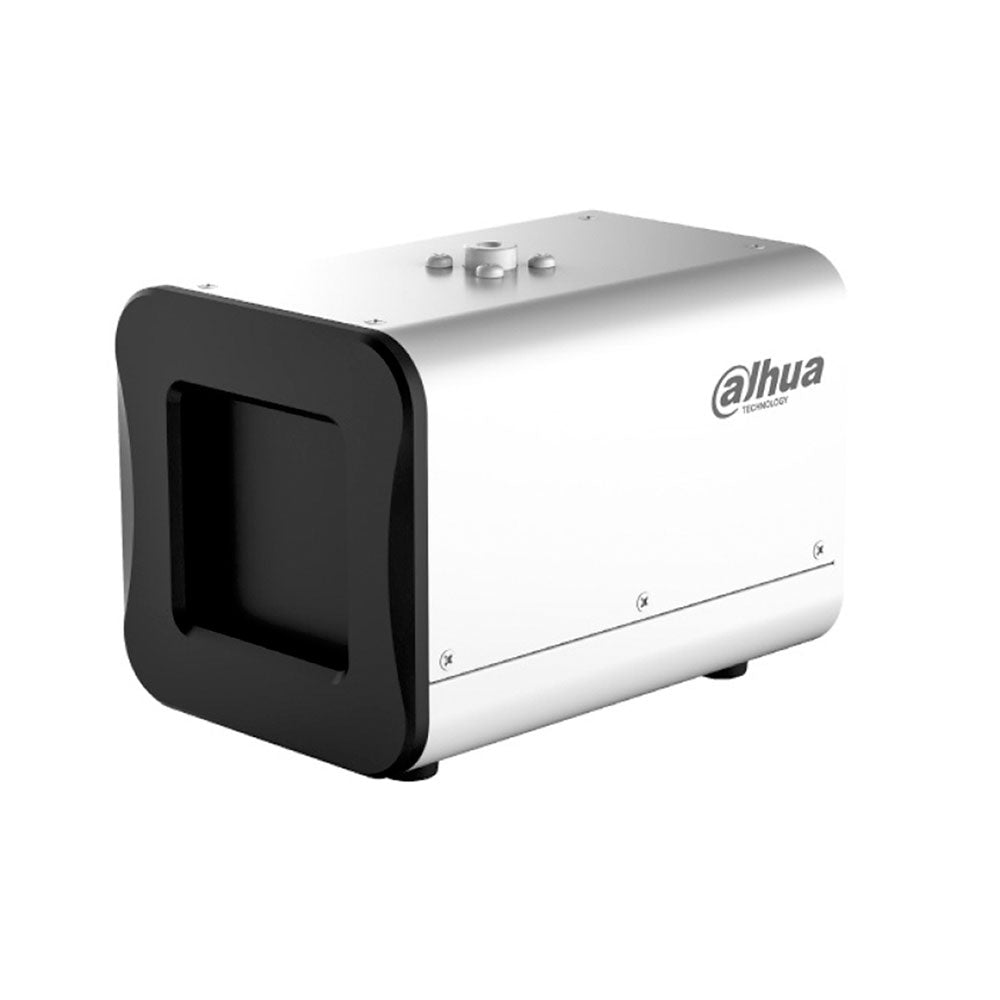

Better known as a "Blackbody", it is a certified instrument that, when placed in the field, provides a constant and accurate temperature reference that the camera uses for self-calibration and to increase measurement accuracy.
Features
- Human temperature measurement reference unit DAHUA-2181 (TPC-BF3221P-TB7F8-HTM)
- The intelligent temperature control meter is used to monitor temperature with high accuracy and stability
- The target surface is coated with high emissivity aerospace coatings
Specifications
- PT100 temperature sensor
- Factory set operating temperature: 35°C, 37°C, 40°C (ambient temperature +5.0°C to +50.0°C adjustable)
- Effective radiating surface 70 x 70 mm
- Temperature resolution: 0.1°C
- Temperature accuracy: ± 0.2°C (single point)
- Temperature stability: ± 0.1 ~ 0.2°C / 30min
- Effective emissivity: 0.97
- Pt100 temperature sensor
- Ambient temperature: 0°C ~ + 40°C
- Relative humidity ≤80%
- Power: 230V AC, 50Hz
- Consumption: 35W
- Dimensions: 110 (L) x 120 (H) x 180 mm
- Net weight 1.8 kg
