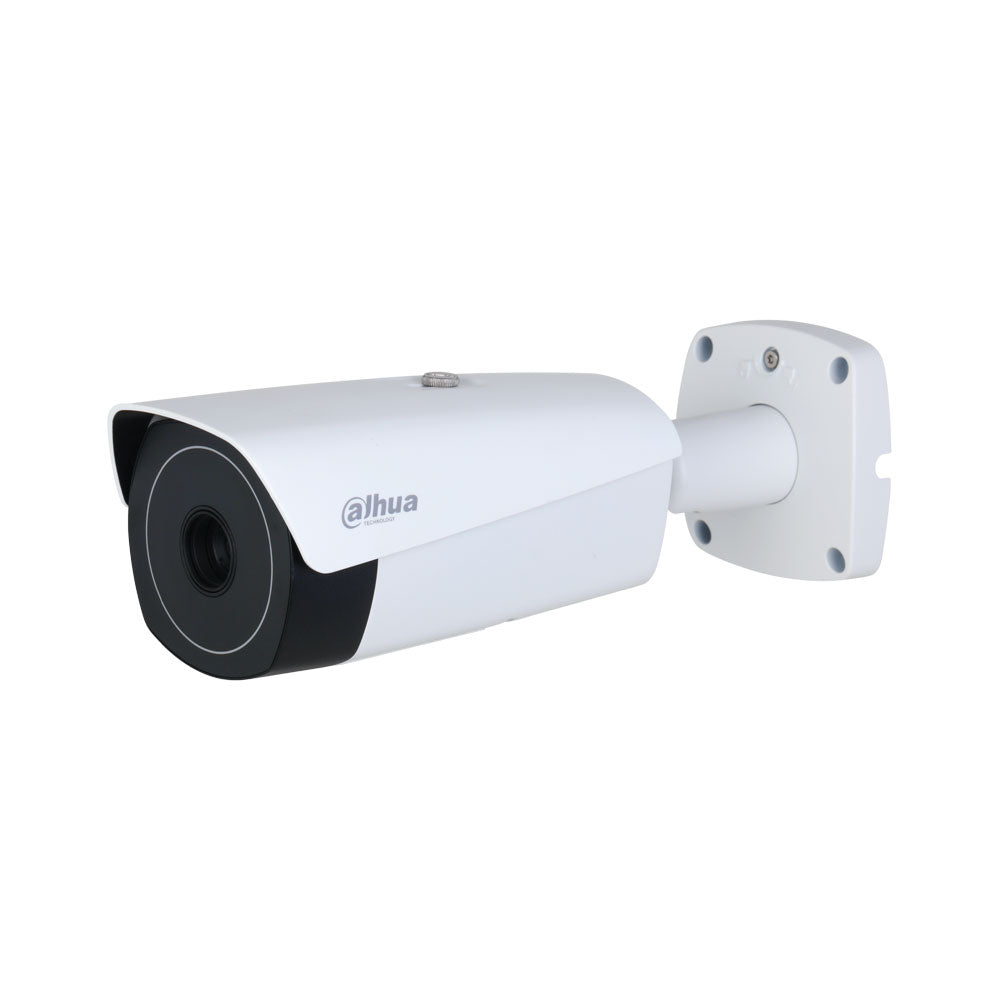

Description
- Uncooled Vanadium Oxide focal plane array
- Effective pixels: 640 x 512
- Pixel size: 12 µm
- Thermal sensitivity (NETD): ≤35 mK (@f/1.0)
- Spectral range: 8 ~14 µm
- Focal length: 5 mm
- Viewing angle: 81°(H), 66°(V)
- Effective distance for people:
- Detection: 208 meters
- Recognition: 53 meters
- Identification: 26 meters
- Effective distance for vehicles:
- Detection: 641 meters
- Recognition: 157 meters
- Identification: 79 meters
- Digital Detail Enhancement (DDE)
- Automatic and manual gain control
- 2D/3D-NR noise reduction
- 18 color palettes
- Low temperature range: -20°C ~ +150°C
- High temperature range: 0°C ~ +550°C
- Temperature accuracy: ±2°C, ±2% / operating temperature -20°C ~ +60°C
- Supports up to 12 simultaneous measurement rules (12 points, 12 lines, 12 regions)
- Video compression H.265, H.264, MJPEG
- Stream 1: 1280x1024 (default), 720P, VGA (1~25/30 fps)
- Stream 2: VGA default, 320x256 (1~25/30 fps)
- Perimeter protection: cross-line detection, intrusion detection
- People and vehicle classification
- Heat detection
- Hot/cold spot tracking
- Audio compression G.711A, G.711Mu and PCM
- CVBS/BNC video output
- 1 audio input / 1 audio output
- 2 alarm inputs / 2 alarm outputs
- RS485 support
- Ethernet: RJ-45 (10/100 Base-T)
- Network protocols: HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, SNMP, QoS, UPnP, NTP
- Supports Onvif, CGI and Dahua SDK
- MicroSD card slot up to 512GB (card not included)
- Power supply: 12V DC (±20%) / PoE (802.3af) / ePoE
- Maximum power consumption: 13W (12V) / 14W (PoE)
- Storage temperature: -30°C ~+70°C
- Operating temperature: -30°C ~+60°C
- Relative humidity: ≤95%.
- 6KV lightning protection
- IP67 rating
- Metal casing
- Dimensions: 103 (L) x 97 (H) x 291 mm
- Weight: 1.4 kg
Note: The effective distances indicated are nominal values and should be used as an estimate. Please consult your sales representative for recommended detection distances with our Vaelsys perimeter system.
