Description
Features
1/2.8" 2-megapixel Sony® STARVIS™ CMOS
STARLIGHT technology
H.265+ compression
Up to 1080p at 50 fps
IVS
IP68 protection rating
IK10 vandal protection
NEMA 4X
316L stainless steel
Specifications

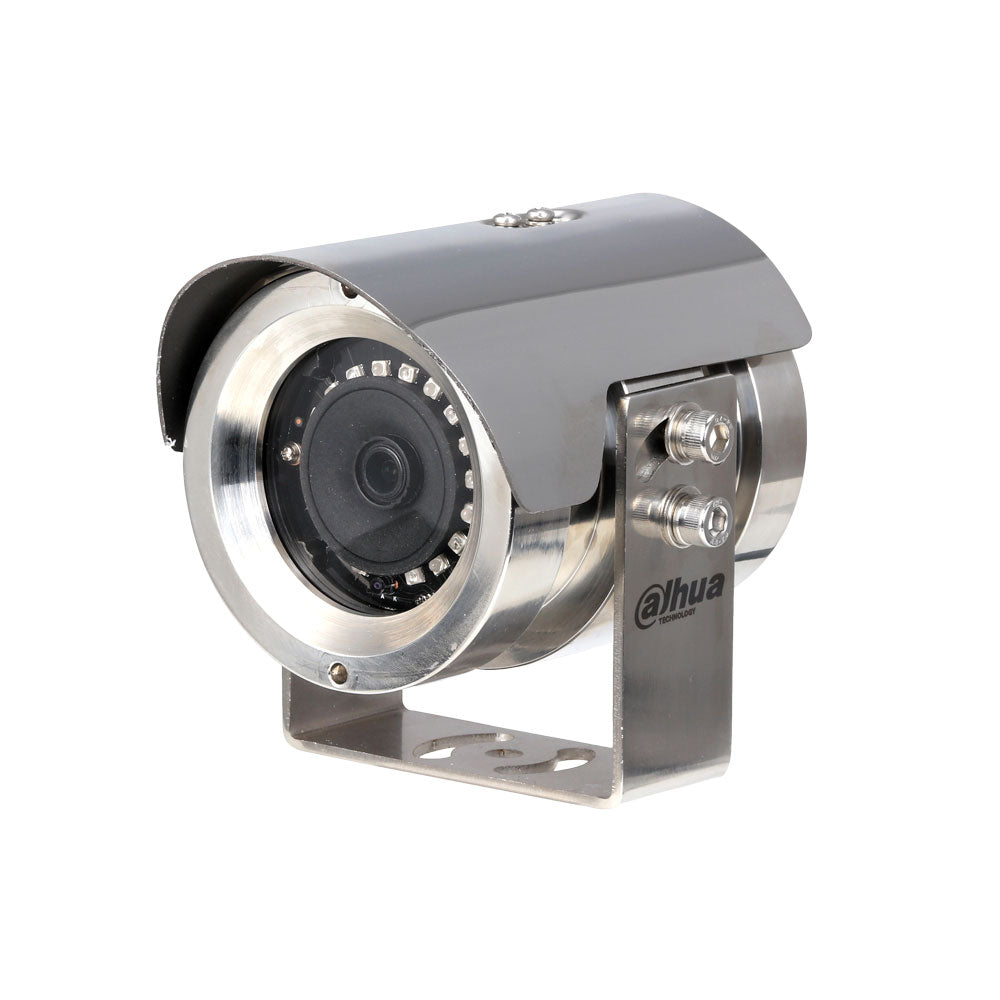

- 316L stainless steel housing, ideal for marine environments, chemical plants, etc.
- 1/2.8" 2-megapixel Sony® STARVIS™ CMOS sensor
- H.265+, H.265, H.264+, H.264 compression formats
- Digital resolution: 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), CIF (352x288)
- Triple stream
- Stream 1: 1080P, 1.3MP, 720P (1 ~ 50 fps)
- Stream 2: D1, CIF (1 ~ 25 fps)
- Stream 3: 1080P, 1.3MP, 720P (1 ~ 25 fps)
- Day/night mode with removable mechanical filter
- Infrared illumination: 18 LEDs, up to 30 meters
- Minimum illumination: 0.005 lux color F2.1, 0.0005 lux B/W F2.1, 0 lux IR on
- 3.6 mm fixed lens
- Viewing angle: 87° (H), 48° (V)
- White balance: Auto, ATW, Indoor, Outdoor, Manual
- Automatic and manual gain control
- Backlight compensation (BLC, HLC)
- True WDR 120dB
- 2D/3D-DNR noise reduction
- Video sensor
- Masking
- ROI support
- 16X digital zoom
- Intelligent Video Detection (IVS): line crossing, intrusion, lost/abandoned objects
- Network interface: RJ45 (100/1000 Base-T)
- Network protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
- Compatible with ONVIF S & G, API
- Up to 20 users
- Power supply: 12V DC, 1.5A
- Consumption: 5W
- 802.3af PoE
- Operating temperature from -40°C to +60°C
- Humidity: <95%
- IP68 protection rating
- IK10 vandal protection
- Dimensions: 101 (W) x 107.5 (H) x 152 mm
- Weight: 2 kg
- Power supply sold separately
