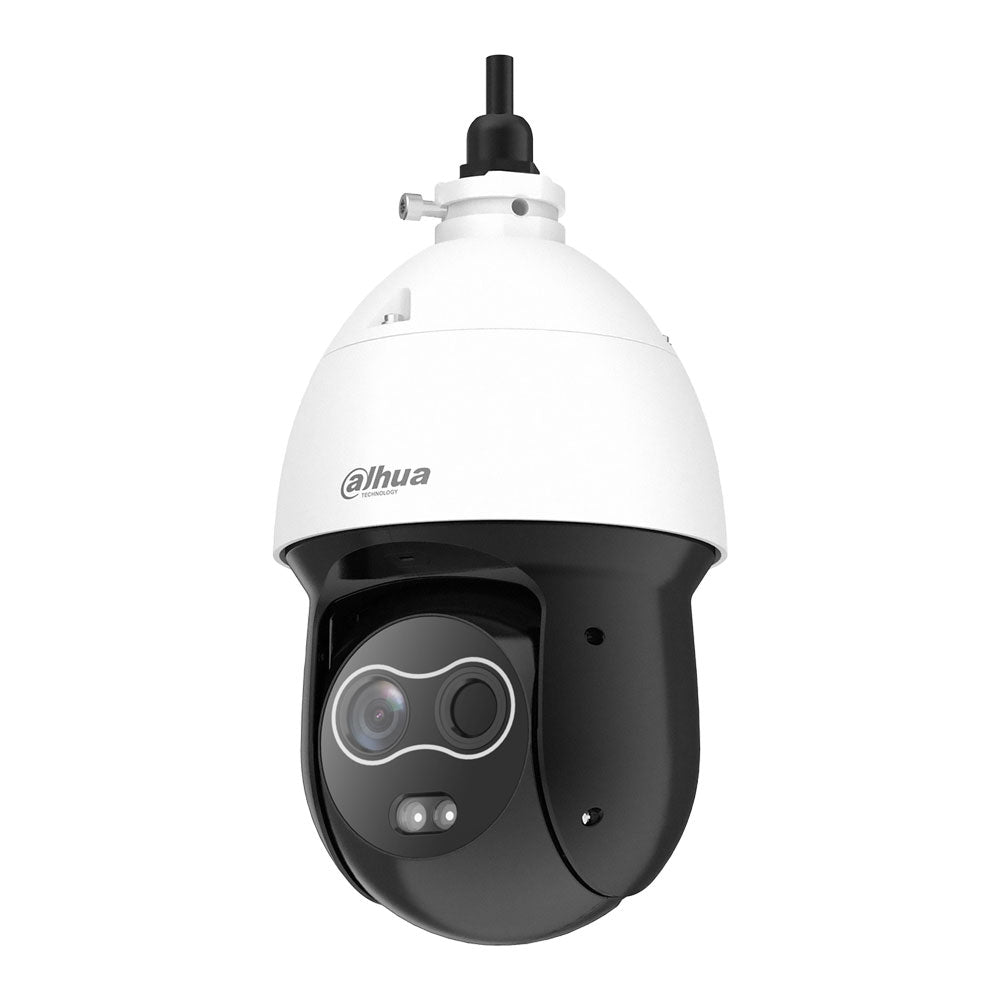

Description
Thermal Camera
- Uncooled VOx focal plane array sensor
- Effective pixels: 256 x 192
- Pixel size: 17 µm
- Thermal sensitivity (NETD): <40mK
- Spectrum range: 8 ~14 µm
- Focal length (thermal): 7 mm
- Angle of view (thermal): 24°(H), 18°(V)
- Effective distance for people:
- Detection: 292 meters
- Recognition: 75 meters
- Identification: 38 meters
- Effective distance for vehicles:
- Detection: 778 meters
- Recognition: 194 meters
- Identification: 97 meters
- 16X digital zoom
- Digital detail enhancement
- Electronic image stabilizer
- Automatic and manual gain control
- 2D/3D noise reduction
- 18 color palettes
- Thermal Stream 1: 1280x960, 1024x768, 640x480, default 1280x960 (25 fps)
- Thermal Stream 2: 640x480, default 256x192 (25 fps)
Visible Camera
- 1/2.7" 4 Megapixel CMOS sensor
- Effective pixels: 2336 x 1752
- Infrared illumination of ≥50 meters
- 0.05 lux (color), 0.005 lux (B/W), 0 lux IR on
- Fixed 8 mm lens
- Angle of view: 33.4° (H), 25° (V)
- Day/night mode with removable mechanical filter
- Image modes: BLC, HLC, Digital WDR, 2D/3D-NR, Digital Defog
- White balance with 7 modes
- Automatic and manual gain control
- Privacy mask up to 4 zones on the same screen
- Video compression H.265, H.264, MJPEG
- Visible camera resolution: 2336x1752, 1920x1080, 1280x720, 704x576, 352x288
- Visible Stream 1: default 2336x1752, 1920x1080, 1280x720, 704x576 (25 fps)
- Visible Stream 2: default 1280x720, 704x576, 352x288 (25 fps)
- IVS detection: line crossing detection, intrusion detection
- Advanced detection functions: fire detection, hot/cold spot tracking, human/vehicle classification, smoke detection
Positioner
- Horizontal positioner: 0° ~ 360° continuous
- Vertical positioner: -15° ~ 90°
- Manual speed: 0.1° ~ 200°/sec. (H), 0.1° ~ 120°/sec. (V)
- Preset speed: 240°/sec. (H), 200°/sec. (V)
- 300 presets
- 5 patterns, 8 tours of up to 32 presets, 5 Scan
General
- Audio compression G.711a, G.711mu and PCM
- 1 audio input / 1 audio output
- BNC video output
- 2 inputs / 1 alarm output
- 1 RS485 port
- Ethernet: RJ-45 (10/100 Base-T)
- Network protocols: HTTPS, HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, SNMP, QoS, UPnP, NTP
- Supports Onvif, CGI, Dahua SDK
- Up to 10 users
- Compatible browsers IE, Chrome, Firefox
- Compatible with Android and iOS mobile devices
- MicroSD card slot up to 256 GB (card not included)
- Power supply: 12V DC, 2A (±20%) / PoE+ (802.3at) / ePoE
- Consumption: <12W ~ <24W
- Storage temperature -40°C ~ +70°C
- Operating temperature -30°C ~+60°C
- Relative humidity: ≤ 95%
- 6KV lightning resistant
- IP66 protection rating
- Metal casing
- Dimensions: Ø160 x 295mm
- Weight: <3.2 kg
- Includes wall mount
Note: The effective distance values indicated are nominal values and should be used as an estimate. Consult your sales representative for recommended detection distances with our Vaelsys perimeter system.
