Description
Features

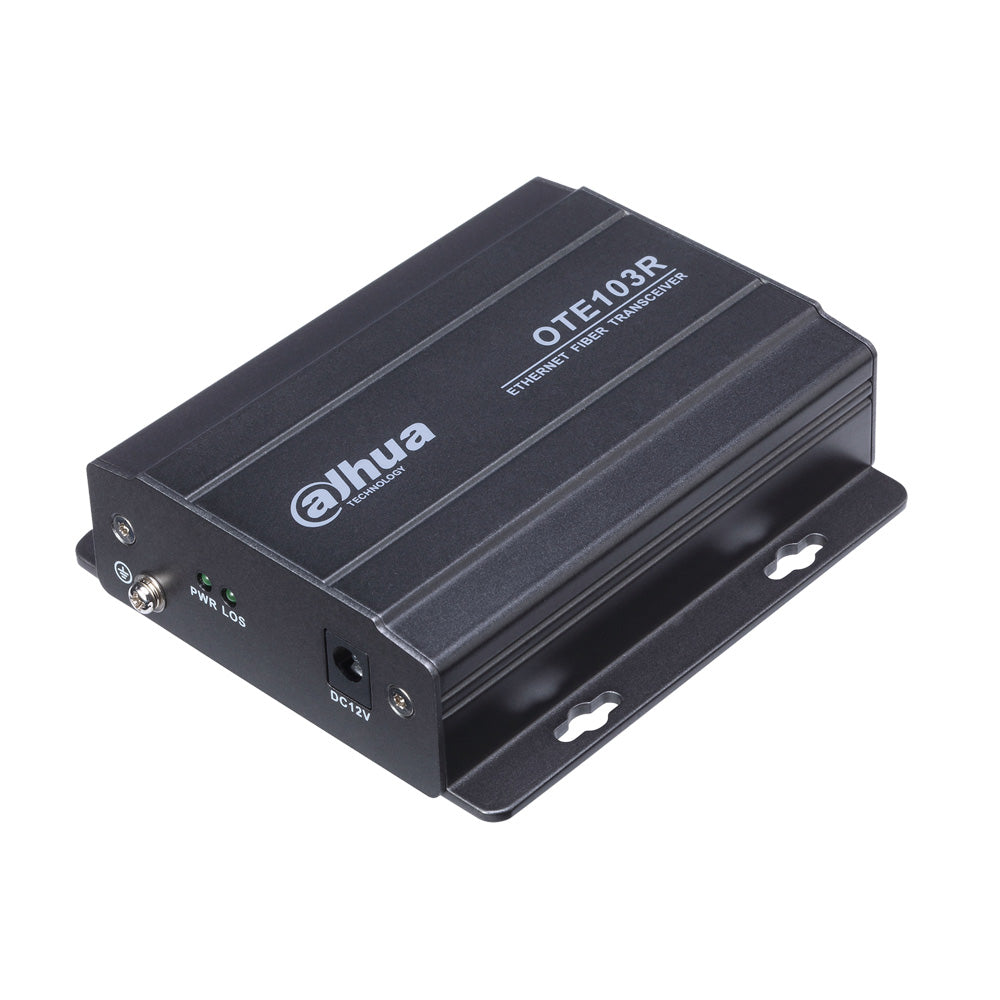

Single-mode media converter, receiver unit (RX)
- Allows changing the data stream transmission medium from a standard STP / UTP twisted pair cable to a single-mode fiber optic cable
- The device has an FC connector that ensures reliable connections
- The optical signal is transmitted and received in the II and III transmission window of 1310/1550 nm
- 20 km single-mode fiber transmission range
- IEEE 802.3u, IEEE 802.3x Standard
- 1 RJ-45 LAN port, UTP/STP
- 10/100Mbps transmission speed
- Optical wavelength: 1550 nm (transmission) / 1310 nm (reception)
- Automatic bit rate detection
- Bi-directional transmission through one optical fiber
- LEDs indicate proper device operation
- WDM (Rx 1550 nm) optical wavelength division multiplexing technology
- Power supply: 12V DC /330 mA (power supply not included)
- Operating temperature from -40°C~+75°C
- Relative humidity: 10%~90%
- Dimensions: 112 x 96 x 30 mm
- Weight: 318 g
