Description
Features

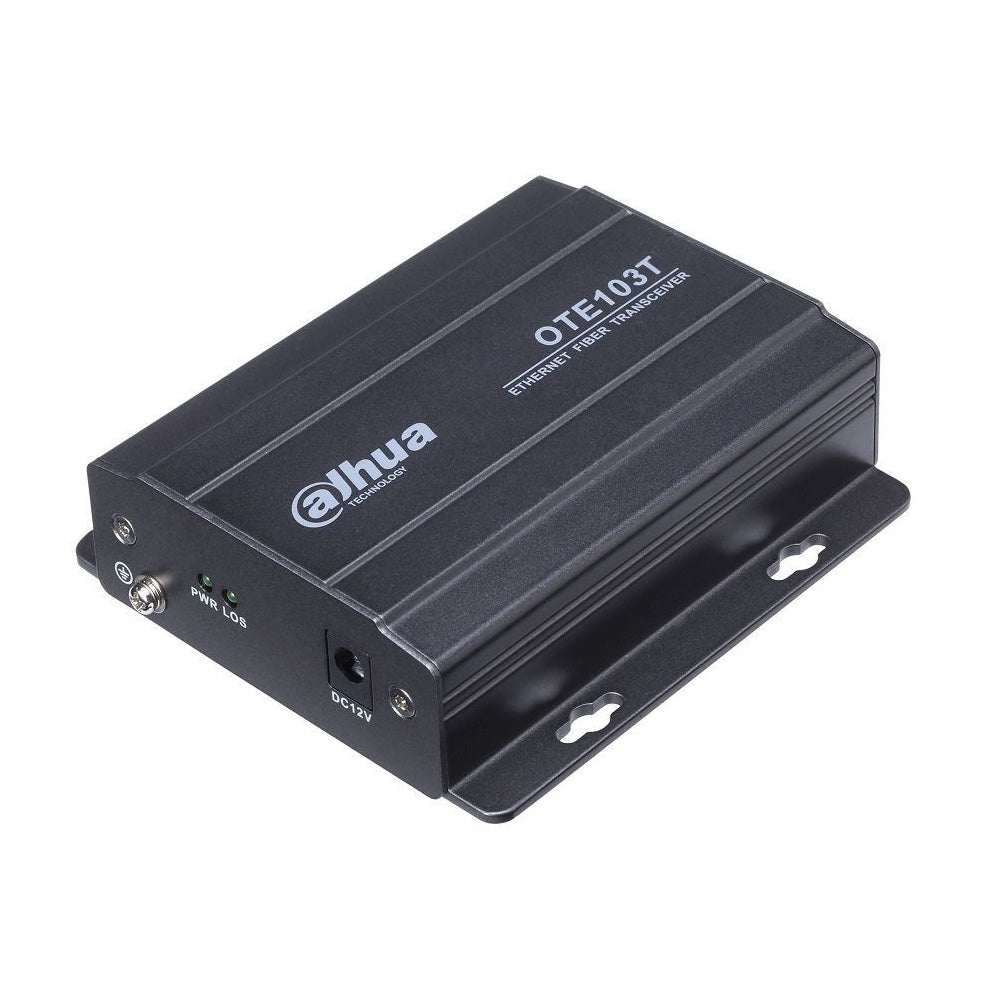

Single-mode media converter, receiver unit (RX)
- Allows changing the transmission medium of the data stream from a standard STP / UTP twisted pair cable to a single-mode fiber optic cable
- The device has an FC connector that ensures reliable connections
- The optical signal is transmitted and received in the II and III transmission window of 1310/1550 nm
- 20 km transmission range Single-mode fiber
- IEEE 802.3u, IEEE 802.3x standard
- 1 RJ-45 LAN port, UTP/STP
- 10/100Mbps transmission speed
- Optical wavelength: 1310 nm (transmission) / 1550 nm (reception)
- Automatic bit rate detection
- Bidirectional transmission through a fiber optic cable
- LEDs that indicate the correct operation of the device
- Wavelength Division Multiplexing (WDM) technology (Tx 1310nm)
- Power supply: 12V DC /330 mA (power supply not included)
- Operating temperature of -40°C~+75°C
- Relative humidity: 10%~90%
- Dimensions: 112 x 96 x 30 mm
- Weight: 318 g
