Technical specifications

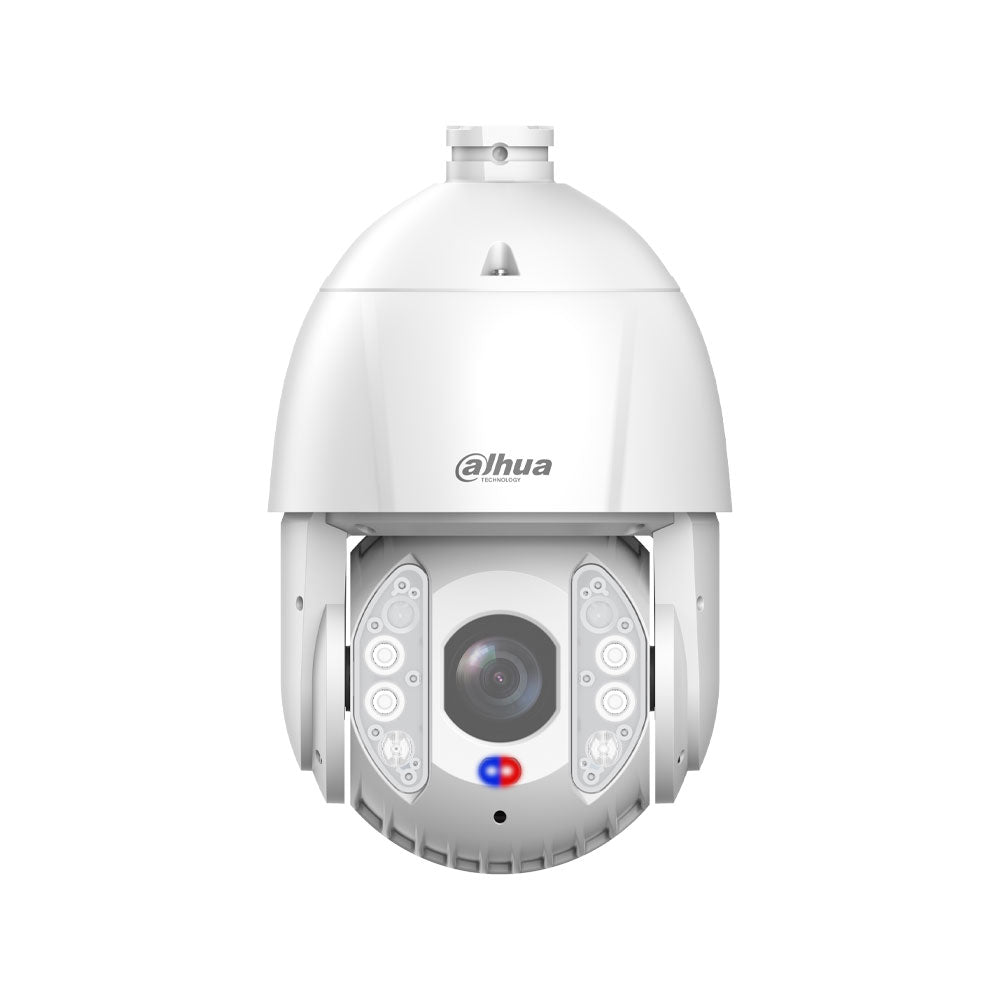

- Dahua WizSense TiOC IP PTZ Dome
- 1/1.8" CMOS sensor
- Maximum resolution of 3840 × 2160
- Auto day/night with ICR, color and black and white
- Minimum color illumination of 0.005 lux@F1.6
- Minimum black and white illumination of 0.0005 lux@F1.6
- 0 lux with illuminator on
- IR range up to 250 m
- Warm light range up to 100 m
- Illuminator control with zoom priority, manual, automatic or off
- 6 Dual Light Fusion illuminators
- Motorized optics from 5.4 mm to 135 mm
- Maximum aperture F1.6-F4.0
- Horizontal viewing angle from 61.6° to 3.6°
- Vertical viewing angle from 35.7° to 2°
- Diagonal viewing angle 66.6° to 4°
- 25x optical zoom
- Auto, semi-auto or manual focus
- Minimum focus distance 0.5 m to 7 m
- Auto, manual or iris priority
Video
- Video compression Smart H.265+, H.265, Smart H.264+, H.264, H.264B, H.264H and MJPEG on substream 1
- 3-stream capability
- Resolutions: 8M (3840 × 2160), 4M (2560 × 1440), 3M (2304 × 1296), 1080P (1920 × 1080), 960P (1280 × 960), 720P (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480) and CIF (352 × 288/352 × 240)
- Stream 1: 8MP/4MP/1080P/1.3MP/720P@1-25/30 fps
- Stream 2: D1/VGA/CIF@1-25/30 fps
- Stream 3: 1080P/1.3MP/720P@1-25/30 fps
- CBR/VBR bit rate control
- H.264 bit rate from 128 Kbps to 16384 Kbps
- H.265 bit rate from 51 Kbps to 10240 Kbps
Features
- BLC, HLC and WDR 120 dB
- White balance automatic, indoor, outdoor, tracking, manual, sodium lamp, daylight and street light
- Gain control automatic, manual or with gain priority
- 2D NR and 3D NR noise reduction
- Motion detection
- Region of Interest RoI
- Electronic Image Stabilization EIS
- Electronic defogging
- 16x digital zoom
- 180° image rotation
- Signal/noise ratio ≥55 dB
- Privacy mask up to 24 areas, with up to 8 areas in the same view, multiple colors and mosaic available
- Smart Dual Light with infrared and warm light switching based on target detection
- Active deterrence through red and blue warning light
Smart functions
- Video metadata with detection of motor vehicles, non-motorized vehicles, faces and human bodies
- Extraction of up to 10 motor vehicle attributes and 8 non-motorized vehicle attributes
- Extraction of up to 6 facial attributes and 8 human body attributes
- IVS perimeter protection with line crossing, intrusion, fence crossing, loitering, abandoned or lost object, fast movement, parking, crowd gathering, alarm classification by person and linked tracking.
- Face detection with optimization, capture, upload of high-quality facial snapshots and facial image enhancement
- Extraction of 6 attributes and 8 facial expressions
- Face cropping for a one-inch photo
- Real-time capture policies, quality priority and preferred image selection from a group of snapshots
- Site monitoring with detection of 6 helmet colors, helmet verification, work uniforms, face mask, shoes, presence or absence of an individual in the area.
- WizTracking
- SMD 4.0
- AcuPick for accurate search of people and motor vehicles in live and recorded videos
- Automatic patrol after an IVS event to cover predefined key points and detect real-time threats
- Xinghan large-scale AI models - Vision
Positioner
- Continuous pan from 0° to 360°
- Tilt from -20° to +90° with 180° auto flip
- Manual pan control speed from 0°/s to 260°/s
- Manual tilt control speed from 0°/s to 140°/s
- Preset pan speed 300°/s
- 200°/s preset tilt speed
- 300 presets
- 8 tours
- 5 patterns
- 5 scans
- Memory after power failure
- Idle motion by preset, pattern, patrol or scan
- PTZ protocol DH-SD and Pelco-P/D with auto recognition
Audio
- Audio compression PCM, G.711a, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729 and G.723
- Built-in speaker
- 1 LINE IN audio input via bare wire
- 1 LINE OUT audio output via bare wire or built-in speaker, mutually exclusive
- Audible warning with 11 built-in voice alarm contents and up to 10 customizable voice contents that can be imported
- Adjustable sound volume from 0 to 100
- Audible alarm playback from 1 to 10 times
- Audible warning requires the use of an external speaker
Storage
- Storage via MicroSD card up to 512 GB (card not included), FTP/SFTP and NAS
Alarms
- 2 alarm inputs
- 1 alarm output
- Alarm linkage via capture, recording, email sending, preset, patrol, pattern, digital alarm and audio output
- Motion detection, tampering, audio detection, network disconnection, IP address conflict, memory card status and memory space alarms
- Red and blue light warning
- Adjustable flash duration from 5 to 30 seconds
- High, medium or low flash frequency
Communication interface
- 1 RS-485 interface with a bit range of 1200 bps to 9600 bps
Network
- RJ45 10/100 Base-T network port
- Protocols HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, IPv6, 802.1x, SSL, QoS, FTP, UPnP, ICMP, SNMP, IGMP, ARP, RTCP, RTP, PPPoE, RTMP, Bonjour, SMB and NFS
- Support for ONVIF S/G/T profiles, CGI and SDK
- Unicast and multicast streaming method
- 20 users with a total bandwidth of 64M
- DMSS and DSS Pro management software
- iOS and Android mobile client
- Supported browsers IE 9 and later, Chrome 41 and later, Firefox 50 and later, Safari 10 and later
Power supply
- 24 V DC, 2.5 A ±25% power supply
- PoE+ 802.3at
- Basic power consumption 14 W
- Maximum consumption of 21 W with WDR, IR activated, PTZ operation and alarm via 24 VDC
- Power adapter included
Environment
- Operating temperature -40°C to +70°C (-40°F to +70°F)
- Operating humidity ≤95%.
- IP67 protection
- IK10 vandal resistance
- TVS 6000 V lightning protection
- Overvoltage and transient voltage protection
Physical characteristics
- Wall mounting with bracket included
- Ceiling, pole, corner, flush or parapet installation using optional accessories
- Dimensions: 208 mm × 202 mm × 325 mm
- Net weight 4.45 kg
- Gross weight 6.62 kg
Content
- Dahua WizSense TiOC 8MP IP PTZ Dome DAHUA-5283 (DH-SD6E825MA-HNR-A-PV1)
- PFB305W wall bracket included
- DC24V/2.5A power adapter included
Certifications and standards
- CE: EN 55035, EN IEC 61000-3-2, EN 55032, EN 60950 and EN 62368-1
