Description

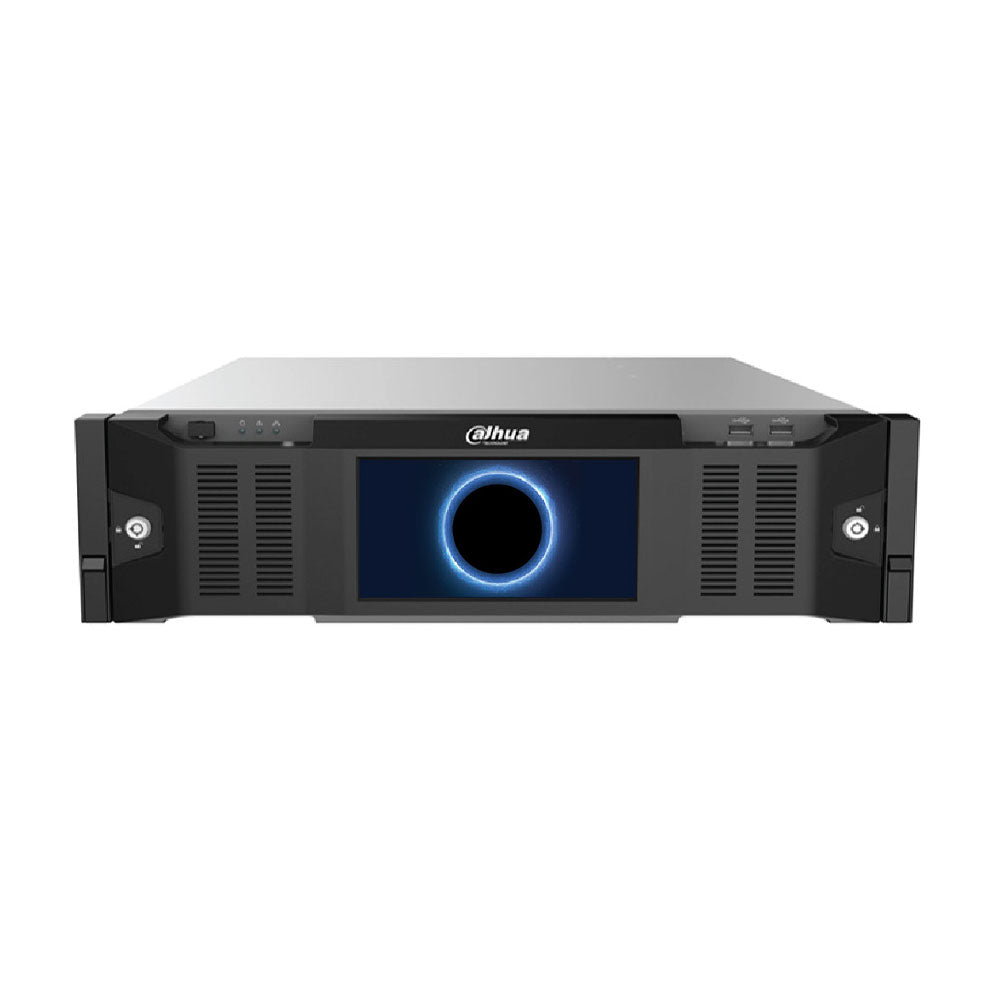

Security Management Platform Description
High-performance Security Management Platform based on Linux OS and pre-installed DSS software. It improves hardware performance and provides centralized video surveillance, access control, video intercom, alarm controller, and artificial intelligence functions such as facial recognition, automatic license plate recognition, and video metadata.
It is suitable for medium to large-scale scenarios, such as residential areas and casinos.
Features
- Real-time display with customizable layout, remote control of devices and manual recording in case of emergency
- Playback of recorded videos with speed settings, marking, locking, and filtering for quick searches
- Configurable large screen displaying recorded or real-time videos, with scheduled tasks
- Location of devices and events on maps, with alarm highlighting and detailed sub-maps
- Target search and movement tracking by artificial intelligence
- Monitoring of over 200 alarms, including custom options for major events
- Consolidated alert and device information, with scheduled system reports
- Access control with cards, effective rules, and simultaneous management of multiple zones
- Video intercom management with two-way communication, remote control, and group alert
- Complete visitor process, from appointment scheduling to permit cancellation, with detailed records
- Traffic analysis with heat mapping to identify usage patterns and peak times.
- Remote parking management with customizable rules and detailed vehicle records.
Technical Specifications
- Intel i5-12400 6-core, 64-bit processor
- Lynxvision operating system based on Linux
- 16 GB memory
- 24/7 operation
- Hot-swappable hard drives
- Supports SAS and SATA hard drives
- 4 Ethernet ports (100/1000Mbps)
- 2 USB 2.0 ports at the front, 2 USB 3.0 ports at the rear
- 3 HDMI ports
- 1 VGA port
- Up to 2000 total devices
- Up to 500 video devices (1000 channels)
- Up to 32 P2P devices
- Up to 500 Onvif devices (1000 channels)
- Up to 20 facial recognition devices (100 channels)
- Up to 100 ANPR channels
- Up to 100 video metadata channels
- Up to 100 user roles (32 roles per user)
- Up to 50 remote users and 200 total users
- Up to 20 user groups
- Up to 200 users per group
- Up to 500 devices with RTSP access (1000 channels)
- Up to 200 access control devices (500 doors)
- Up to 2000 video intercoms
- Up to 64 alarm panels (640 zones)
- Up to 20 emergency call towers (40 channels)
- Up to 32 people counting channels
- Up to 32 heat maps
- Incoming video bandwidth: 600 Mbps
- Outgoing video bandwidth: 600 Mbps
- SDK platform provided
- Seagate 7200 RPM Enterprise Class 4TB system hard drive
- Supports up to 15 3.5" hard drives for video or image storage (max. 16 TB per hard drive)
- Up to 200 TB of storage per server
- Single hard drive mode
- 600 Mbps video storage bandwidth
- Maximum power consumption of 315 W, standard power consumption of 210 W
- Operating temperature: 0°C ~ +40°C
- Operating humidity: 10% ~ 80% (non-condensing)
- Storage temperature -20°C ~ +70°C (-20°C ~ +70°C)
- Storage humidity: 5% ~ 90% (non-condensing)
- Dimensions: 444.8 x 133.2 x 522.2 mm
- Net weight: 19.1 kg
- 19" rack-mountable
