Description

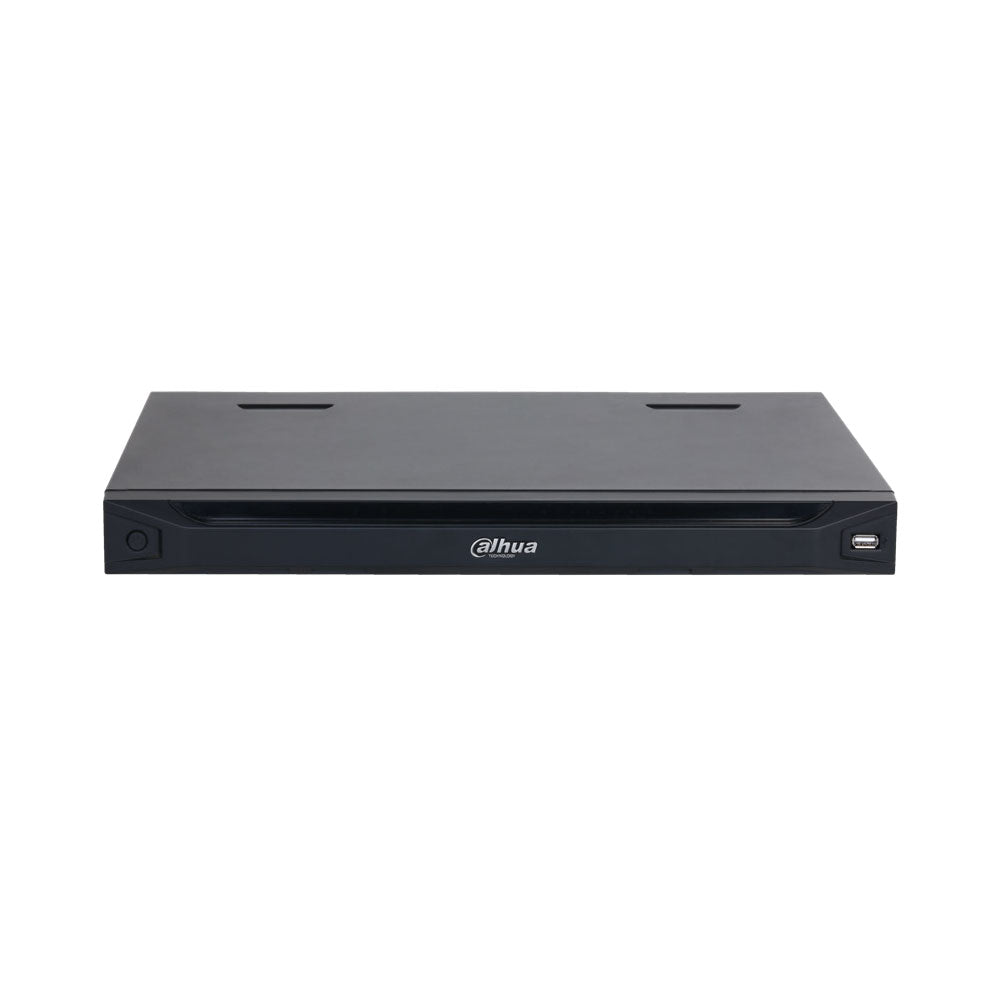

- IP decoder for video signals up to 32MP
- Embedded processor
- Linux operating system
- Video formats H.265+, H.265, H.264, MJPEG, MPEG2 and MPEG4
- Audio formats PCM, G711 and AAC
- Total decoding capacity: 2 channels @32MP (25 fps), 7 channels @12MP (25 fps), 10 channels @8MP/4K, 14 channels @6MP (25 fps), 36 channels @1080P (30 fps), 144 channels @D1 (30 fps)
- Decoding resolution: 32MP, 12MP, 8MP, 6MP, 5MP, 3MP, 1080P, 720P, 960H, D1, HD1, 2CIF, CIF, QCIF
- Display resolution: 4096x2160, 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
- 1 HDMI 2.0 input, 1 HDMI 1.4 input
- Collector resolution: 3840x2160 (60 fps), 3840x2160 (30 fps), 1920x1080 (60 fps), 1680x1050, 1440x900, 1280x1024, 1280x960, 1280x800, 1280x720, 1024x768, 800x600
- 1/4/6/8/9/16/25/36 output division/free division
- 4 HDMI 2.0 outputs
- Two-way audio via 3.5 jack port
- 8 alarm inputs / 8 alarm outputs
- 1 RJ45 port (10/100/1000M)
- 2 RS232 ports
- 1 RS485 port
- Power supply: 12V DC, 5A
- Power consumption: ≤60W
- Operating temperature: 10°C ~ +55°C
- Operating humidity: 10% ~ 95%
- Dimensions: 440 (W) x 44 (H) x 322 mm (1U)
- Weight: 3.2 kg
