Description
Technical specifications

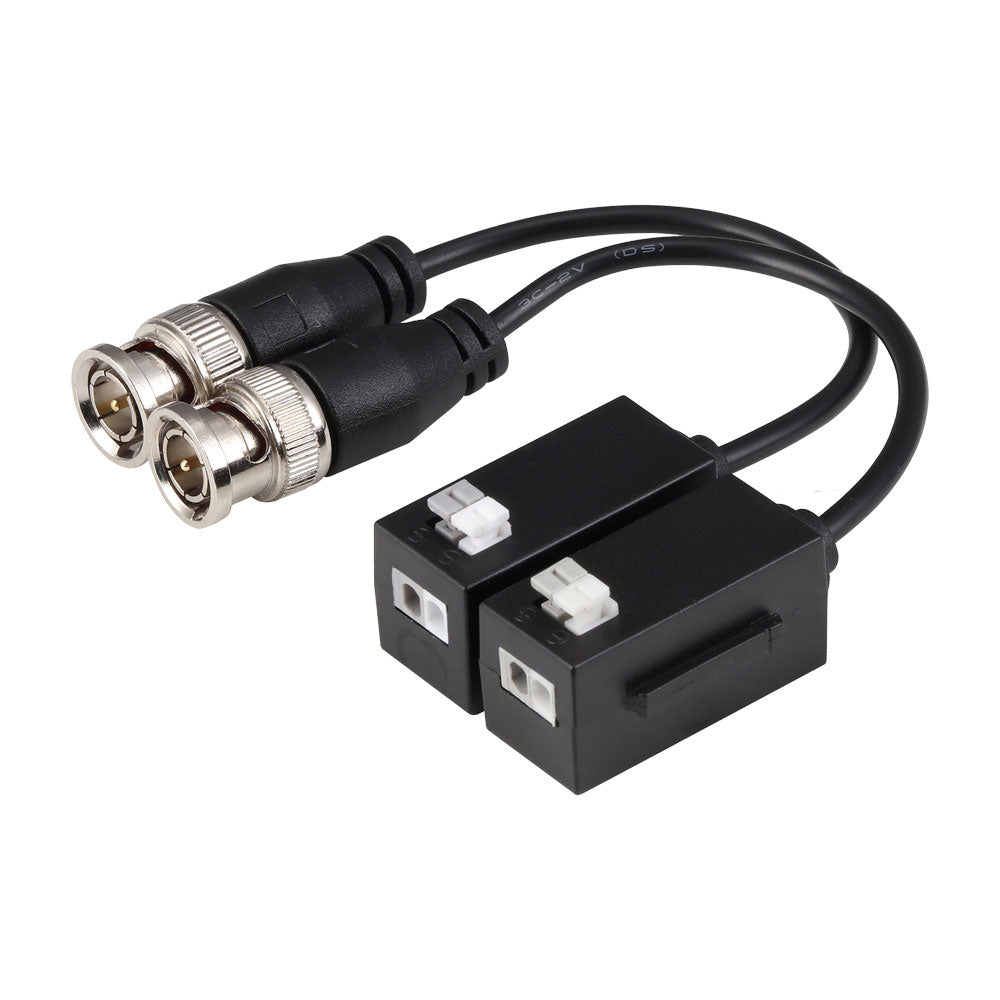

- Dahua 1-channel passive video balun
- Real-time transmission over CAT5E/6 UTP cable (CU material)
- 1-CH transmission signal
- Compatible with HDCVI, TVI, AHD, and CVBS formats
- Supported resolutions: 720P/1080P/4MP/5MP/4K
- HDCVI maximum range: 720P up to 400m, 1080P up to 250m, 4M/5M/4K up to 200m
- TVI maximum range: 720P up to 400m, 1080P up to 250m, 4M/5M up to 200m
- AHD maximum range: 720P up to 400m, 1080P up to 250m, 4M/5M up to 200m
- BNC male coaxial connector
- Connection via RJ45 and plug-in screw terminal
- BNC impedance: 75 ohms
- UTP cable impedance: 100 ohms
Electrostatic Discharge (ESD) Protection
- Level 3 ESD protection by contact and air discharge according to IEC61000-4-2
- Surge protection on UTP connector: 2KV in differential mode and 4KV in common mode according to IEC61000-4-5
Environment
- Operating temperature: -30 °C~+70 °C
- Storage temperature: -40 °C~+80 °C
- Operating humidity: <95% RH
Physical characteristics
- Black ABS casing
- Dimensions: 173.8 mm x 19.5 mm x 21 mm
- Net weight: 40 g
- Gross weight: 40 g
Contents
- Pack of 10 DAHUA-1630 (PFM800-4K) 1-channel passive video baluns
