Description

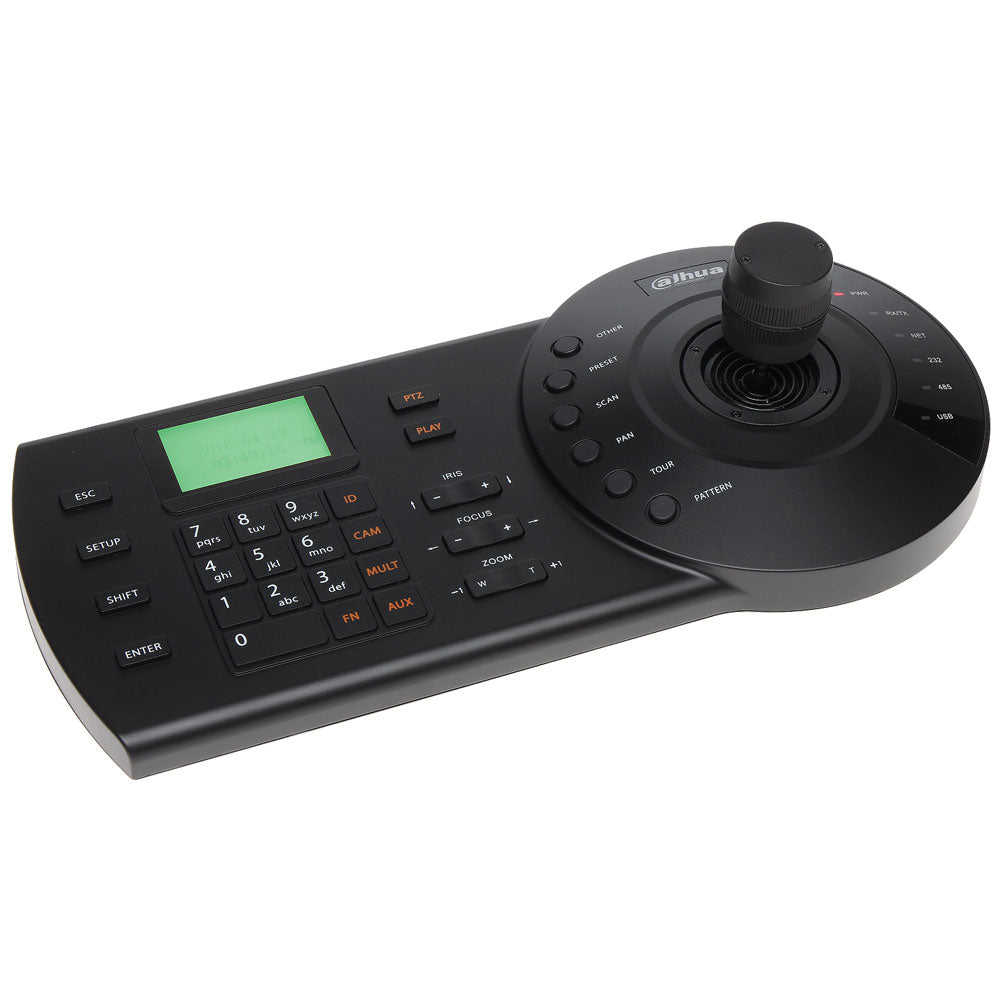

- Controls DVRs and PTZ domes
- 3-AXIS Joystick (PTZ control)
- Preset positions, auto scan, auto pan, auto tour, and auxiliary model functions
- LCD screen (75.2 x 33.85 mm)
- On-screen menu, usage tips
- Connections: RJ45, RS232, RS485, RS422 (reserved) and USB
- Direct mode communication: 1 RS232 / 2 RS485, DH2 DVR protocol, DH-SD1 / Pelco-D / Pelco-P / etc. dome protocol
- IP mode communication: RJ45, DVR/Dome protocol by IP address / Port /
- Protocol
- Up to 64 users (including administrator)
- Up to 256 addresses per RS485
- Up to 2048 IP PTZ domes per user
- Power supply: 100 V ~ 240 V AC (50 Hz)
- Consumption: 5W
- Working temperature: -10°C ~ +55°C
- Relative humidity: 10% ~ 90%
- Dimensions: 330 (width) x 139 (depth) x 102 (height) mm
- Weight: 1.3 kg
- Supplied with 220V adapter
